TM 9-2320-360-34-1
6-15.1. DDEC III WIRE HARNESS REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Condition
Materials/Parts
ECM removed (TM 9-2320-360-20).
Tags, Identification (Item 56, Appendix B)
Inner fender removed (right side only)
Ties, Cable, Plastic (Item 60, Appendix B)
(TM 9-2320-360-20).
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
a.
Removal
WARNING
Engine
must
be
cool
before
performing maintenance. Failure to
comply may result in injury to
personnel.
NOTE
Tag and mark wires before removal.

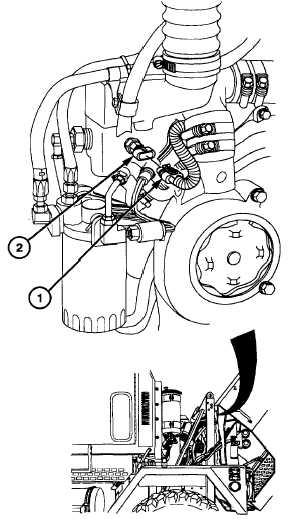

(1)
Remove electrical connector (1) from
coolant temperature sensor (2).
6-192 Change 3
|
