6-14. RADIO WIRE HARNESS REPLACEMENT
This task covers:
a. Removal
c. Follow-On Maintenance
b. Installation
INITIAL SETUP
Equipment Condition
Materials/Parts
Batteries disconnected (TM 9-2320-360-20).
Tags, Identification (Item 56, Appendix B)
Ties, Cable, Plastic (Item 60, Appendix B).
Locknut (Item 91, Appendix F)
Tools and Special Tools
Tool Kit, Genl Mech (Item 202, Appendix E)
a.
Removal
(1)

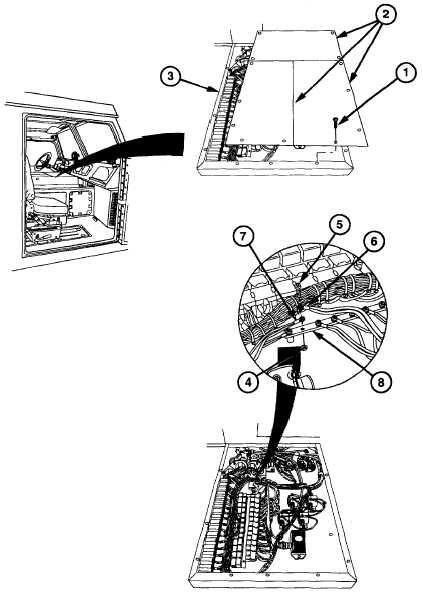

Remove 19 screws (1) and 3
panels (2) from electronic control
box (3).
NOTE
·
Tag
and
mark
wires
before
removal.
·
Two ground wires are connected
by one electrical connector.
(2)
Remove locknut (4), screw (5),
two ground wires no. 1435 (6),
and two black radio harness wires
(7) from terminal strip (8). Discard
locknut.
