TM 9-2320-360-34-1
6-13. ELECTRONIC CONTROL BOX WIRE HARNESS REPLACEMENT (CONT)
(44)

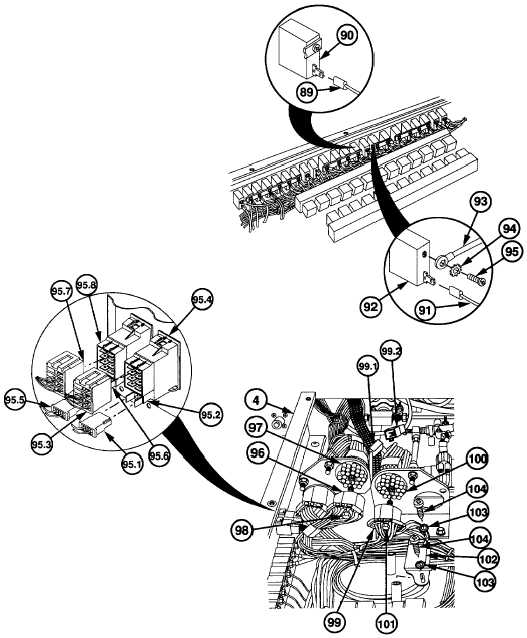

Install wire no. 1712 (89) on
engine brake circuit breaker (90).
(45)
Install wire no. 1931 (91) on
tachograph circuit breaker (92).
(46)
Install wire no. 1107 (93) on
tachograph circuit breaker (92)
with new lockwasher (94) and
screw (95).
(46.1)
Install connector (95.1) on light
assembly (95.2).
(46.2)
Install connector (95.3) on switch
(95.4).
(46.3)
Install connector (95.5) on light
assembly (95.6).
(46.4)
Install connector (95.7) on switch
(95.8).
NOTE
Post in connector must line up with
tab on receptacle.
(47)
Install white electrical connector
(96)
on
receptacle
(97)
and
tighten screw (98).
(48)
Install black electrical connector
(99) on receptacle (100) and
tighten screw (101).
(48.1)
Install electrical connector (99.1)
on cab wire harness connector
(99.2).
NOTE
Step (49) applies only to DDEC II
vehicles.
(49)
Install DDEC diagnostic connector
(102) on electronic control box (4)
with two new lockwashers (103)
and screws (104).
6-178 Change 3
|
