TM 9-2320-360-34-1
6-12. ELECTRONIC CONTROL BOX/LIGHTS WIRE HARNESS REPLACEMENT (CONT)
(26)

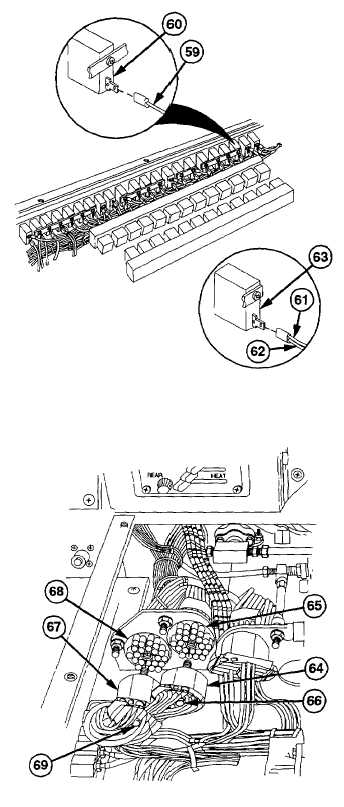

Install wire no. 1835 (59) on clearance lights
circuit breaker (60).
(27)
Install wire no. 1292 (61) and wire no. 1927
(62) on headlights circuit breaker (63).
NOTE
Slot on electrical connector must line
up with tab on receptacle.
(28)
Install electrical connector (64) on cab wire
harness receptacle (65) and tighten screw (66).
(29)
Install connector (67) on cab wire harness
receptacle (68) and tighten screw (69).
6-162
|
