TM 9-2320-360-34-1
6-12. ELECTRONIC CONTROL BOX/LIGHTS WIRE HARNESS REPLACEMENT (CONT)
NOTE
Slot on connector must line up with
tab on flasher.
(12)

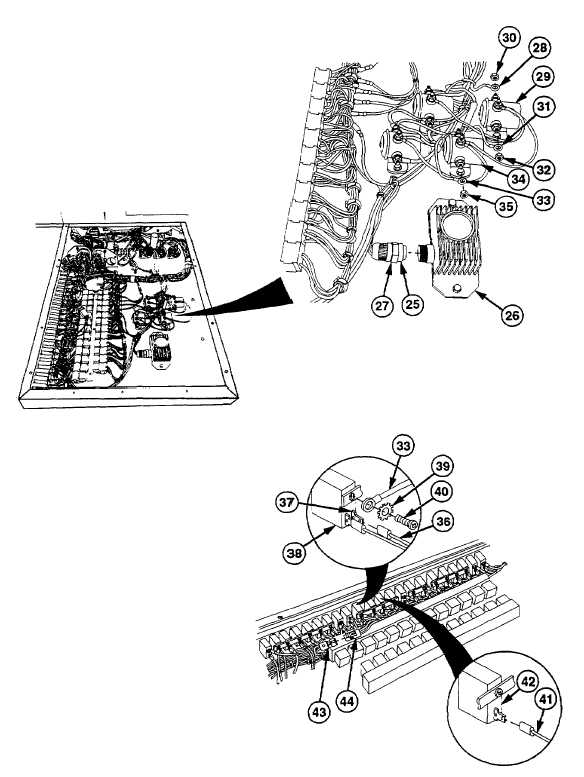

Install electrical connector (25) on flasher unit
(26) and tighten retainer (27).
(13)
Install wire no. 1109 (28) on relay (29) with nut
(30).
(14)
Install wire no. 1175 (31) on relay (29) with nut
(32).
(15)
Install wire no. 1075A (33) on relay (34) with nut
(35).
(16)
Install wire no. 1919 (36) on wire no. 1020A
connector (37).
(17)
Install wire no. 1075A (33) on wiper circuit
breaker (38) with new lockwasher (39) and
screw (40).
(18)
Install wire no. 1276 (41) on gages/warning
lights circuit breaker (42).
(19)
Install electrical connector (43) on electronic
control box wire harness connector (44).
6-160
|
