TM 9-2320-360-34-1
6-11. ENGINE WIRE HARNESS REPLACEMENT (CONT)
(9)

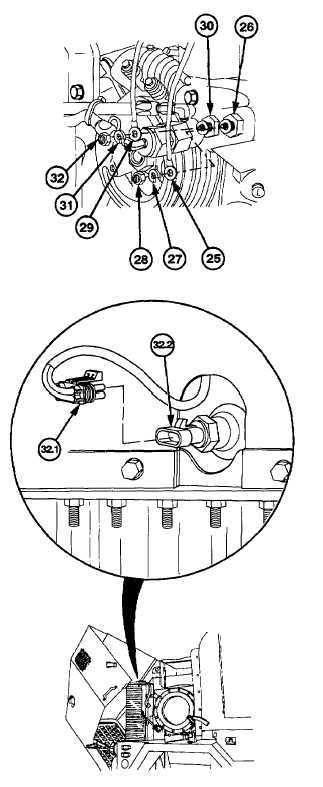

Install wire no. 524 (25) on alarmstat (26) with
new lockwasher (27) and nut (28).
(10)
Install
wire
no.
1320
(29)
on
coolant
temperature
sending
unit
(30)
with
new
lockwasher (31) and nut (32).
NOTE
Step (10.1) applies only to DDEC III
vehicles.
(10.1)
Install connector (32.1) to coolant level sensor
(32.2).
6-148 Change 3
|
