TM 9-2320-360-34-1
6-11. ENGINE WIRE HARNESS REPLACEMENT (CONT)
(28)

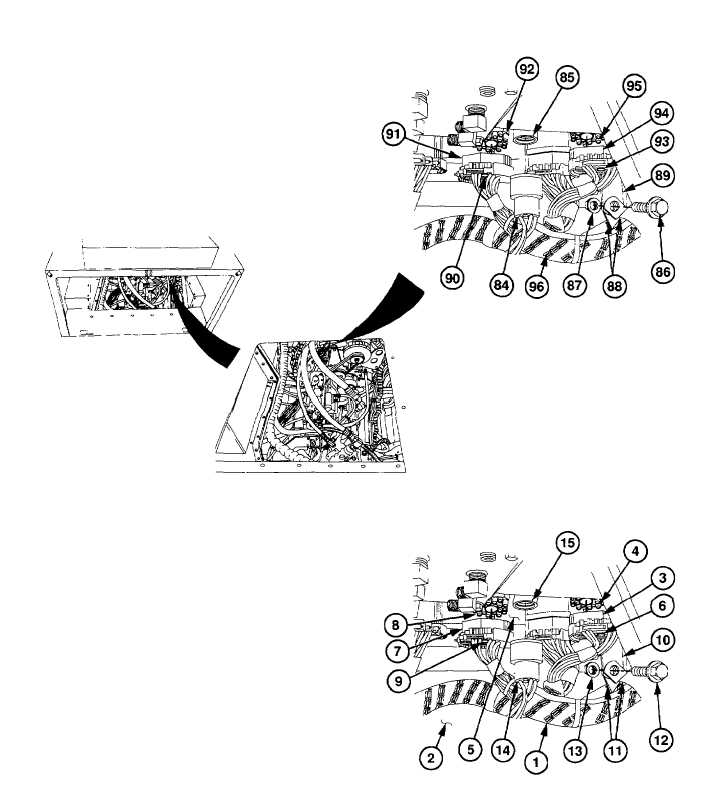

Remove engine harness connector (84)
from STE/ICE harness connector (85).
(29)
Remove screw (86), locknut (87), and two
clips (88) from cab stand off bracket (89).
(30)
Loosen screw (90) and remove green
connector (91) from receptacle (92).
(31)
Loosen screw (93) and remove yellow
connector (94) from receptacle (95).
(32)
Remove engine wire harness (96) from
HET Tractor.
b. Installation
NOTE
Evenly
distribute
any
slack
in
harness.
Do
not
make
any
connections.
(1)
Position wire harness (1) on engine (2).
(2)
Install yellow connector (3) on receptacle (4) in
doghouse (5) and tighten screw (6).
(3)
Install green connector (7) on receptacle (8) in
doghouse (5) and tighten screw (9).
(4)
Install engine wire harness (1) on cab stand off
bracket (10) with two clips (11), screw (12), and
new locknut (13).
(5)
Install
engine
harness
connector
(14)
on
STE/ICE harness connector (15).
6-146.2 Change 3
|
