TM 9-2320-360-34-1
6-9. STE-ICE WIRE HARNESS REPLACEMENT (CONT)
(18)

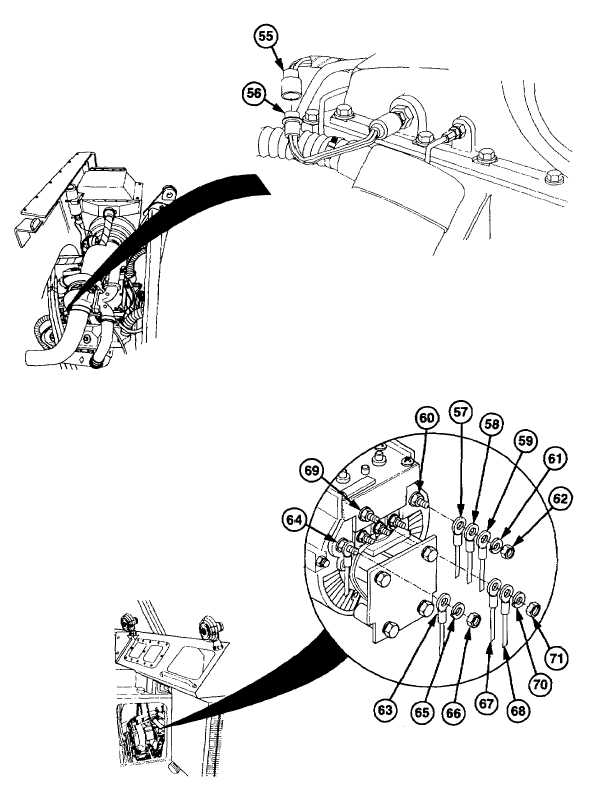

Install connector (55) on turbo
boost sensor (56).
(19)
Install wire no. 1817 (57), wire
no. 1430 (58), and wire no. 1831
(59) on 12-volt alternator positive
(+)
terminal
(60)
with
new
lockwasher (61) and nut (62).
(20)
Install wire no. 1815 (63) on 12-
volt alternator negative (-) terminal
(64) with new lockwasher (65) and
nut (66).
(21)
Install wire no. 1933 (67) and
wire no. 1020 (68) on 12-volt
alternator IGN (ignition) terminal
(69) with new lockwasher (70) and
nut (71).
6-130 Change 2
|
