TM 9-2320-360-34-1
(24)

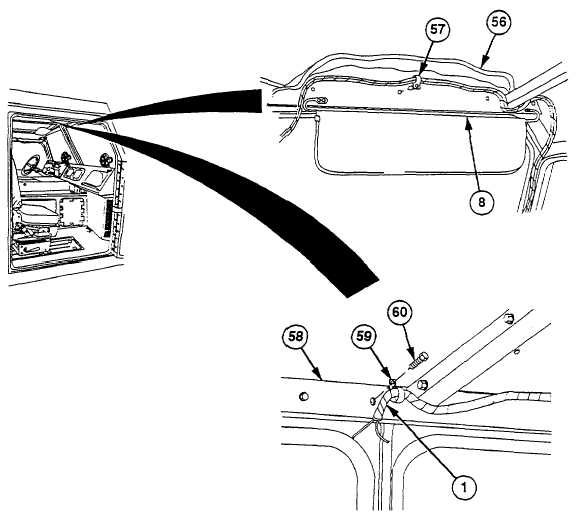

Pull insulation (56) back 3 in. (76.2 mm)
from cab roof (8) and install cab wire
harness (1) on cab roof (8) with four new
snap clips (57).
(25)
Install cab wire harness (1) on cab front
brace (58) with cushion clip (59) and
screw (60).
(26)

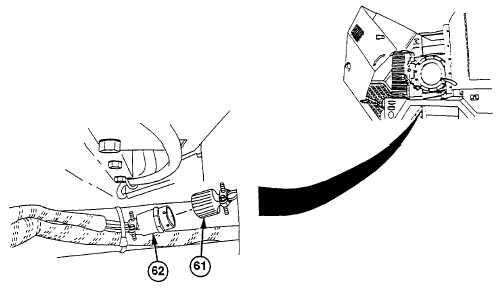

Install chemical alarm electrical connector
(61)
to
cab
wire
harness
electrical
connector (62).
6-81
|
