CAUTION
Oil holes in fan hub must line up with
oil notches in splined hub or clutch
may be damaged during operation.
(83)

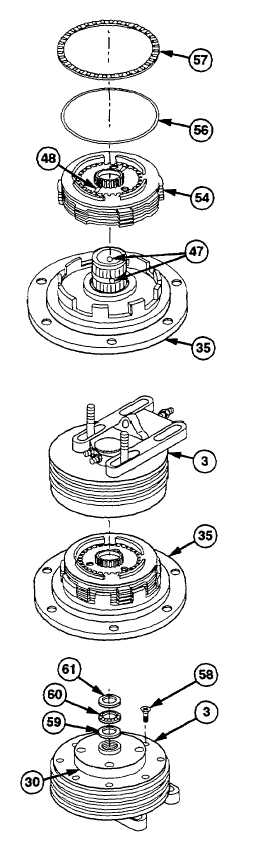

Align oil holes (47) with notches (48) and
install clutch assembly (54) on bearing
retainer (35).
NOTE
If clutch assembly has come apart,
do steps (54) thru (58).
(84)
Coat new preformed packing (56) and
needle bearing (57) with lubricating oil.
(85)
Install new preformed packing (56) on
bearing retainer (35).
(86)
Install needle bearing (57) on clutch
assembly (54).
(87)
Install fan pulley (3) on bearing retainer
(35).
NOTE
Clutch assembly will fall apart if not
held together while turning fan clutch
over.
(88)
Support fan pulley (3) with wooden blocks.
(89)
Install eight screws (58) and torque to 240
lb-in. (27 Nm).
(90)
Install thrust washer (59), needle bearing
(60), and thrust washer (61) on fan hub
(30).
