5-6. FAN CLUTCH REPAIR (CONT)
CAUTION
Ensure support is placed beneath
bracket and shaft assembly. Failure
to comply may result in damage to
fan pulley.

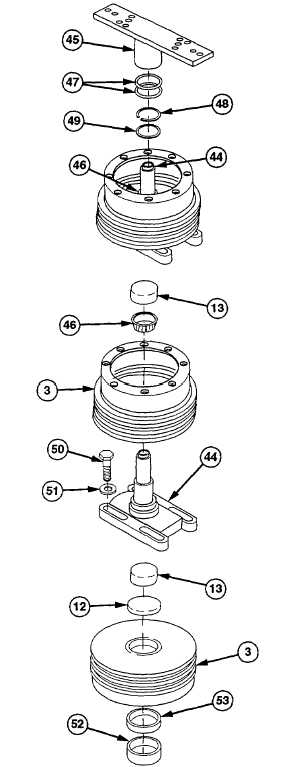

(29)
Support bracket and shaft assembly (44)
with wooden blocks.
(30)
Use tool no. 5 (45) to press bearing (46)
down 1/16 in. (1.5 mm).
WARNING
Wear eye protection and use care
when
removing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released and could cause
severe eye Injury.
(31)
Remove two preformed packings (47),
retaining ring (48), and spacer (49) from
shaft assembly (44). Discard preformed
packings, retaining ring, and spacer.
(32)
Support fan pulley (3) with wooden blocks.
(33)
Use tool no. 8 (13), press out bracket and
shaft assembly (44).
(34)
Remove bearing (46) from fan pulley (3).
(35)
Remove two screws (50) and washers
(51) from bracket and shaft assembly (44).
CAUTION
Ensure tool no. 8 and tool no. 3 are
centered on top of oil seal. Damage
to fan pulley and oil seal may result.
(36)
Support fan pulley (3) with wooden blocks.
(37)
Use tool no. 8 (13) and tool no. 3 (12) to
press out bearing race (52) and oil seal
(53). Discard oil seal.
