TM 9-2320-360-34-1
5-6. FAN CLUTCH REPAIR (CONT)
(12)
Support fan hub (5) with wooden blocks.
(13)

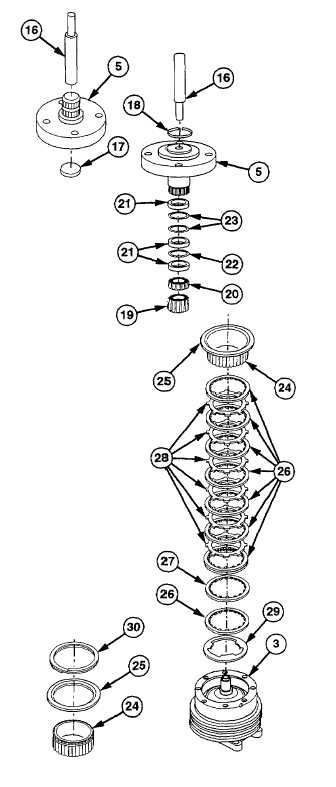

Use tool no. 9 (16) to press out expansion
plug (17). Discard expansion plug.
WARNING
Wear eye protection and use care
when
removing
retaining
rings.
Retaining rings are under spring
tension and can act as projectiles
when released causing severe eye
injury.
(14)
Remove retaining ring (18) from fan hub
(5). Discard retaining ring.
(15)
Support fan hub (5) with wooden blocks.
NOTE
Number and type of shims may vary
among fan clutches.
(16)
Use small end of tool no. 9 (16) to press
out roller bearing (19), roller bearing (20),
thrust washers (21), one needle bearing
(22), and shims (23).
(17)
Remove splined hub (24), back plate (25),
eight fiber splined plates (26), one metal
splined plate (27), six clutch plates (28),
and pressure plate (29) from fan pulley
(3).
(18)
Remove eight fiber splined plates (26),
one metal splined plate (27), six clutch
plates (28), and pressure plate (29) from
splined hub (24).
(19)
Remove retaining ring (30) and back plate
(25) from splined hub (24). Discard
retaining ring.
5-26
|
