e.
Installation
(1)

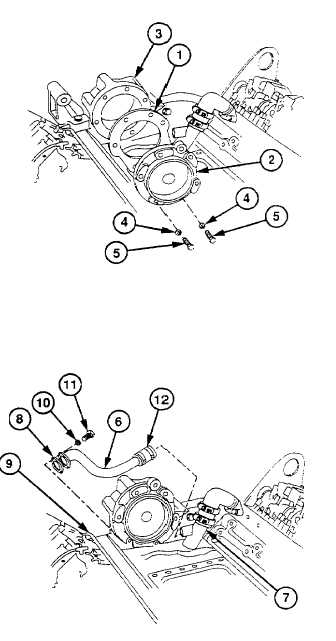

Lightly coat both sides of new gasket (1)
with grease.
(2)
Install new gasket (1) and blower drive
assembly (2) on rear plate (3) with two
new copper washers (4) and screws (5).
Torque to 25-30 lb-ft (34-41 Nm).
(3)
Position crossover pipe (6) on breather
tube (7).
(4)
Install new gasket (8) and crossover pipe
(6) on cylinder head (9) with two new
lockwashers (10) and screws (11).
(5)
Tighten damp (12).
