TM 9-2320-360-34-1
3-28. ENGINE TESTING (CONT)
(62)

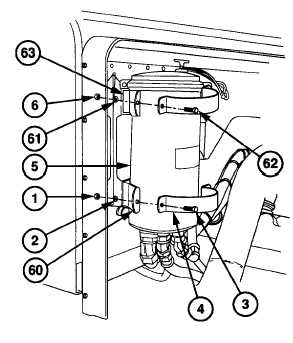

Position lower band (4) on bracket (60)
with two screws (3), new lockwashers (2),
and nuts (1). Do not tighten.
WARNING
Support steering reservoir. Failure to
comply may result in injury to
personnel.
NOTE
Ensure 0.5 in. (13 mm) of clearance
is maintained between top of upper
rear bracket and bottom of cover
band clamp.
(63)
Lower steering reservoir (5) into lower
band (4).
(64)
Tighten two nuts (1) to 30 lb-ft (41 Nm).
(65)
Remove two nuts (6), lockwashers (61),
and screws (62) from upper band (63).
(66)
Install two screws (62), new lockwashers
(61), and nuts (6) on upper band (63).
Torque to 30 lb-ft (41 Nm).
b.
Follow-On Maintenance
(1)
Install exhaust pipe (TM 9-2320-360-20).
(2)
Install air cleaner assembly (TM 9-2320-360-20).
(3)
Start engine (TM 9-2320-360-10).
(4)
Check for leaks around rocker cover gasket.
(5)
Shut off engine (TM 9-2320-360-10).
(6)
Close engine hood (TM 9-2320-360-10).
3-152 Change 3
|
