3-28. ENGINE TESTING (CONT)
NOTE
·
New
gasket
may
appear
oversized.
·
Oil in rocker cover groove or on
gasket will make it difficult to
install.
·
Gasket should be installed at four
corners first. Then remainder of
gasket should be pressed into
place.
(54)

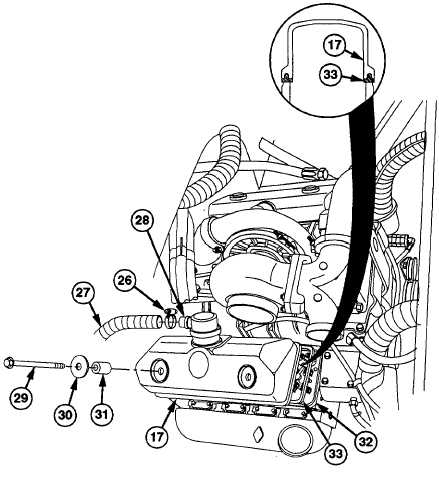

Install new gasket (33) in groove of cover
(17).
(55)
Install rocker cover (17) on cylinder head
(32).
(56)
Install two mounts (31), washers (30), and
screws (29). Torque to 180-240 lb-in.
(20.3-27.1 Nm).
(57)
Install hose (27) on breather retainer (28)
with damp (26).
NOTE
Do steps (59) and (60) for left rocker
cover only.
(58)

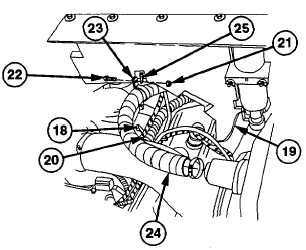

Install clip (23) on air aspiration hose no.
2938 (24) and firewall (25) with screw (22)
and locknut (21).
NOTE
Plastic cable tie should be positioned
in location marked during removal.
(59)
Secure ether start hose (19) to breather
tube (20) with plastic cable tie (18).
