TM 9-2320-360-34-1
c.
Installation
NOTE
Do step (1) only if stud(s) were
removed.
(1)

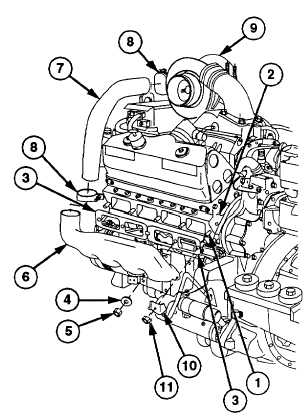

Install stud(s) (1) on cylinder head (2).
Torque to 24-40 lb-ft (34-54 Nm).
NOTE
Gaskets may look reusable, but once
removed they must be replaced.
(2)
Install two new gaskets (3) with crimped
side facing cylinder head (2).
NOTE
Washers must be installed with
crown at center of washer facing out.
(3)
Install three washers (4) and new locknuts
(5) on studs (1). Do not tighten.
NOTE
Exhaust manifold locating pads must
rest on cylinder block locating pads.
(4)
Position exhaust manifold (6) on studs (1).
NOTE
Exhaust
tube
may
not
fit
if
turbocharger
was
removed.
Turbocharger clamp may have to be
loosened and turbocharger adjusted
to align with tube.
(5)
Install exhaust tube (7) with two new
clamps (8) on exhaust manifold (6) and
turbocharger (9).
(6)
Install two crabs (10) and locknuts (11).
Do not tighten.
CAUTION
Be sure to tighten nuts from center
nut outward. Tightening outside nuts
first can crack exhaust manifold.
(7)
Tighten locknuts (5) to 30-35 lb-ft (41-47
Nm).
(8)
Tighten locknuts (11) to 30-35 lb-ft (41-47
Nm).
d.
Follow-On Maintenance
(1)
Install air cleaner (left exhaust manifold
only) (TM 9-2320-360-20).
(2)
Close engine hood (TM 9-2320-360-10).
(3)
Remove wheel chocks.
3-127
|
