TM 9-2320-360-34-1
3-9. AIR BOX DRAINS REPLACEMENT (CONT)
NOTE
· Location of plastic cable ties
should
be
marked
before
removal.
· Wire harness and hoses must
be pulled out of the way.
(2)

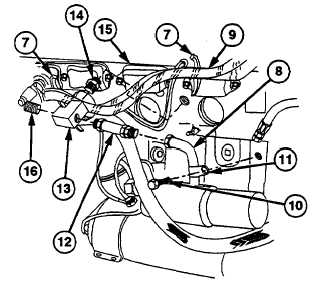

Remove plastic cable ties (7) from hose
(8) and wiring harness (9).
WARNING
Ensure
engine
is
cool
before
performing maintenance. Failure to
comply may result in severe burns.
(3)
Remove screw (10) from clip (11).
(4)
Remove hose (8) from check valve (12).
(5)
Remove clip (11) from hose (8).
(6)
Remove tee (13) and fitting (14) from
engine block (15).
(7)
Remove check valve (12) from tee (13).
(8)
Remove plug (16) from tee (13).
b.
Installation
WARNING
Pipe thread sealing compound can
burn easily, can give off harmful
vapors, and is harmful to skin and
clothing. To avoid injury or death,
keep away from open fire and use in
well-ventilated area. If pipe thread
sealing compound gets on skin or
clothing, wash immediately with soap
and water.
(1)
Coat threads of fitting (1) with pipe thread
sealing compound.
(2)
Install fitting (1) and tee (2) in engine block
(3).
(3)
Coat plug (4) and check valve (5) with
pipe thread sealing compound.
(4)
Install plug (4) in tee (2).
(5)
Install check valve (5) on tee (2).
(6)
Install hose (6) on check valve (5).
(7)
Install hose (6) on engine block (3) with
clip (7) and screw (8).
ENGINE SHOWN REMOVED
FROM CHASSIS FOR CLARITY
ENGINE SHOWN REMOVED
FROM CHASSIS FOR CLARITY
3-70
|
