TM 9-2320-360-34-1
3-7.1. DDEC III SYNCHRONOUS REFERENCE SENSOR (SRS) AND TIMING
REFERENCE SENSOR (TRS) REPLACEMENT/ADJUSTMENT (CONT)
b.
Installation/Adjustment
NOTE
If
mounting
bracket
was
not
removed, skip to step (16).
(1)

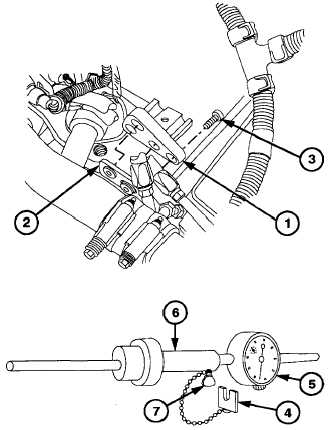

Install bracket (1) on front end plate (2)
with two sockethead screws (3). Do not
tighten.
CAUTION
Ensure spacer is installed between
dial indicator and top of holder.
Failure to comply may result in
damage to dial indicator if piston is
already at top of travel when tool is
installed.
(2)
Install slotted spacer (4) between dial
indicator (5) and top of holder (6). Tighten
clamp screw (7).
(3)

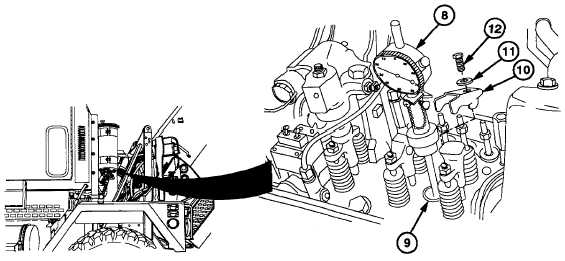

Install timing tool (8) in injector bore (9)
with clamp (10), washer (11), and screw
(12). Torque to 240-300 lb-in. (27-34
Nm).
3-64.2 Change 3
|
